LED Module M28B-VA

Product Name：LED Module M28B-VA

Basic info：Lumileds Luxeon 3030;
Super long lifetime(Lumen maintenance);
Wide applicability for complex situations;
High versatility apply for all sorts of lamps retrofit;
High quality surface treatment.
After special treatment, the module can be used in coastal areas, high ultraviolet areas and other special environments.

Download Projects LED Modules Service

Quality

One year warranty and lifelong maintenance

Cooperation

OEM/distribution, agency

Pre/after sales

Fast response within 24 hours

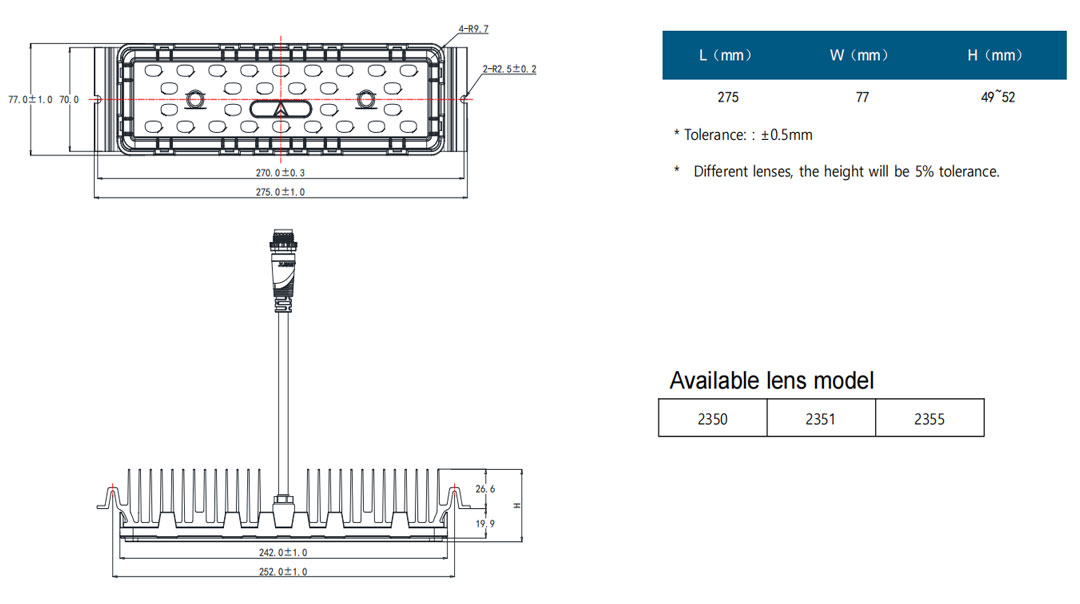

Introduce Technology data 3D

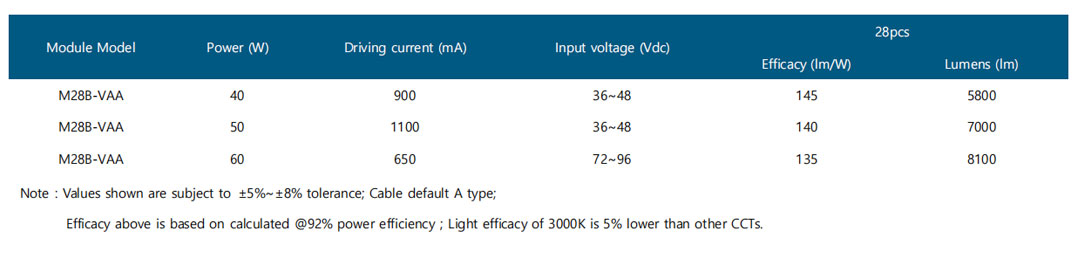

Specification

Working Environment: -40℃~+50℃
Storage Temperature: -40℃~+50℃
Relative humidity: 10%~90%RH
Typical value of pad temperature[1]: 80℃
IP Rating of LED Light Engine: IP68
Impact Protection Level: IK09
Color Temperature (CCT)[2]: 3000K, 4000K, 5000K, 5700K
Main Material: Aluminum 6063
Module NW: 0.67±0.04kg

Features

· Lumileds Luxeon T LED;
· Super long lifetime(Lumen maintenance);
· Multiple lighting distributions available;
· Wide applicability for complex situations;
· High versatility apply for all sorts of lamps retrofit.

Application

· Street lighting retrofit and application;
· Factory lighting retrofit and application;
· Tunnel lighting retrofit and application;
· Sports lighting retrofit and application.
